Description

These Boyd Pinnacle Gravel Carbon Disc wheelsets are for sale and have been set-up as a DEMO. Two options may be available, one with Schwalbe tires, and the other with WTB tires. The wheels have been set-up, and may show signs of handling; but not ridden.

Ideal for gravel rides and mixed surface racing, the Pinnacle Hookless is a purpose-built, low pressure wheelset for all of your perfect rock path and gravel adventures. Take the wheels for a ride straight from your door to the woods, Bikepacking weekends, and your local gravel events. Gravel rides and equipment are all the rage. With the Pinnacle Hookless. Boyd Cycling proudly is at the front of the Gravel Revolution.

A 700c Carbon Wheel, the Pinnacle Hookless is competition ready, designed ideally for gravel and cyclocross tires between 32-42mm in width. This is designed to be a stiff and responsive wheelset. Because the Pinnacle is a disc-specific wheel, Boyd was able to shed a few grams at the rim itself, reducing rotating mass without compromising safety, and the wheel’s unique 2.8mm offset amplifies spoke balance under heavy load.

Return to Top
Features

  • Stiff and responsive DEMO carbon gravel wheelset
  • Tubeless Only Hookless Clincher (65PSI Max)
  • Rim specs: ERW 29mm, IRW 23.4mm, Depth 36mm
  • Handbuilt to exacting tolerances
  • Optimally sized for 700c oversized, 32-42mm tires with low pressure capabilities
  • Boyd Quest Disc Brake hubset w/ Enduro Abec-5 LLB/LLU bearing, Center Lock rotor interface
  • Lacing: 24H front, 28H Rear, 2x/2x (F/R), Pillar Wing j-bend 20 spokes, Pillar DSN double square brass nipples
  • 2.5mm nipple offset helps to balance the spoke tension between drive and non-drive spokes
  • Tubeless rim tape and tubeless valves installed
  • Axles: 12/100 TA front, 12/142mm TA rear
  • Options:

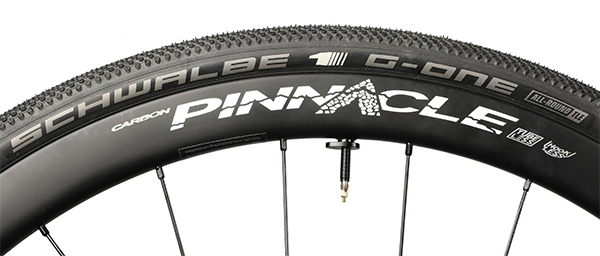

    • Schwalbe G-One Allround TLE tires, 700x35; installed (tubeless), Wheel bags
    • WTB (details to be added)
    • Freehub: Shimano 11s HG
    • Size: 700c
    • DEMO Color: Black
    • Weight: 700g front, 850g rear (wheels only, not tires)
