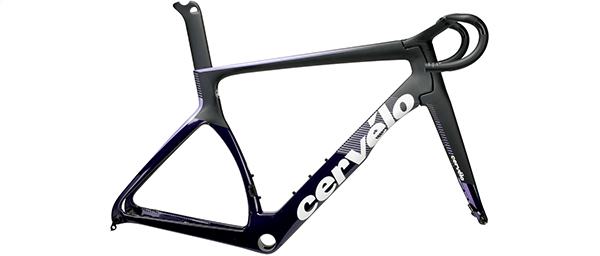

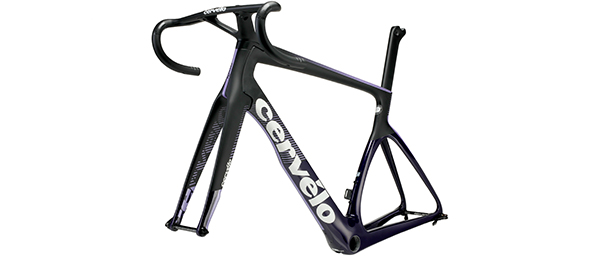

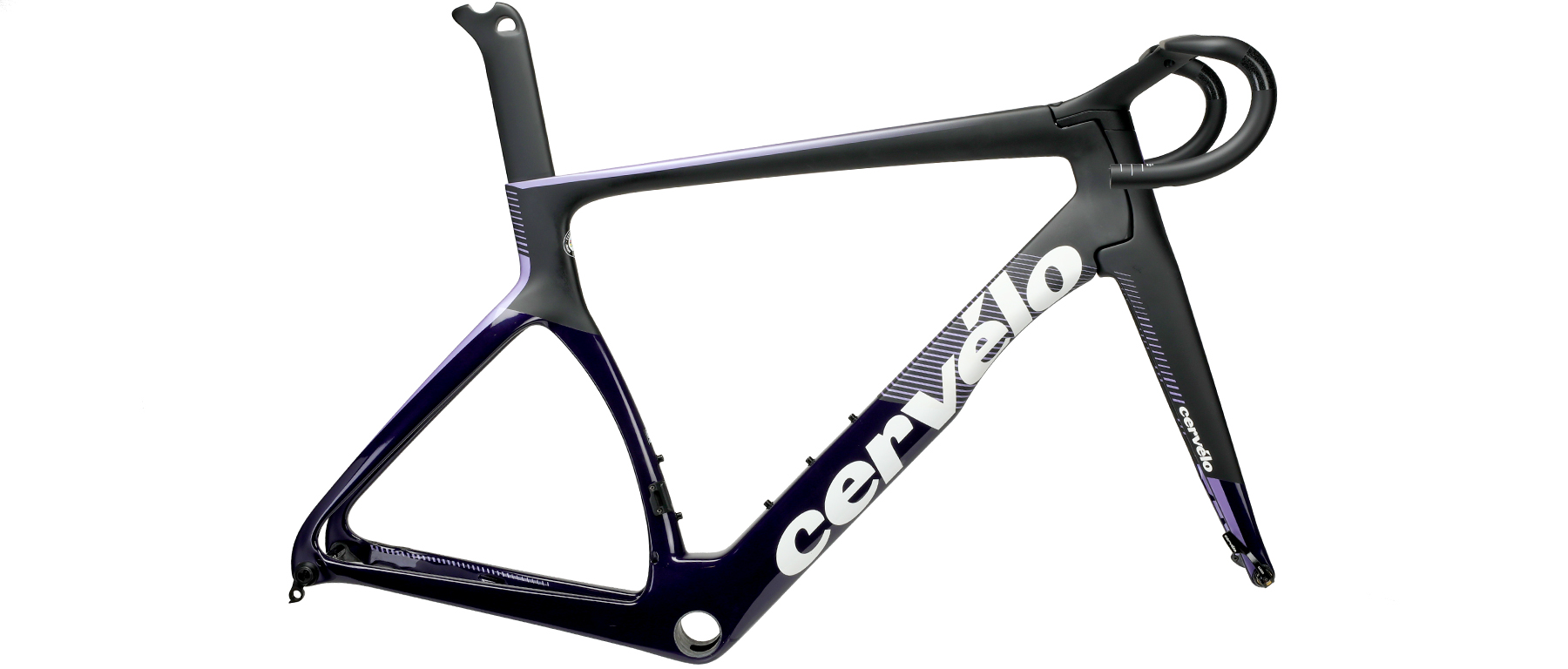

This frameset was assembled and handled for a photo-video shoot. It shows signs of very light use / marking from handling. It comes with a full Cervelo warranty with an exception of any minor finish issues from use and/or handling. It is essentially in Showroom condition, and you can peruse the photos or contact us with any questions at 800.627-6664 or sales@excelsports.com.
It is difficult to find another bicycle manufacturer that has had a greater impact on aerodynamic bike engineering and design than Cervelo. The aero road concept has largely been driven by the Canadian company's development of the Soloist/S series bikes. Cervelo sets strong benchmarks for their own work, persisting until the engineers can truly eclipse an existing version. The 3rd generation Cervelo S5 epitomizes this process making this S5 aero road design even more difficult to improve on.
Cervelo’s leading aerodynamics research/knowledge enhances an acute focus on rider experience and needs. First, the team went back to the aerodynamics drawing board and challenged themselves to see every component’s shape in fresh ways. Then, instead of continuing to refine components, they changed their focus in two ways. First, they considered entire zones on the bike, establishing four that integrated the component sections in each zone. Second, they minutely examined how bike and rider work as a total aerodynamic system. Expanding their thinking this way gave each design and engineering group far more design space in which to balance stiffness, handling, and comfort while delivering speed.... Read More
The results are direct and clear. Start with aerodynamic savings of 5.5 watts (42 grams of drag) achieved compared to the 2 gen S5. How about increasing head tube junction stiffness by 13% to improve handling, and a massive 25% increase in bottom bracket stiffness to deliver every pedal input as well as complement the additional head tube stiffness? If that was it, you'd have a pro tour podium worthy entry. The rider’s center of gravity was lowered via the bottom bracket, providing greater stability during high speeds and cornering. Trail length was increased also to provide greater stability, but more importantly trail values were unified across all sizes, for superior ride and handling qualities for each frame size, a particular benefit for smaller frames. The result is Stack and Reach measurements that are proportionate and appropriate for very size without compromising handling. How? Cervelo made a different size and spec fork for each frame size.

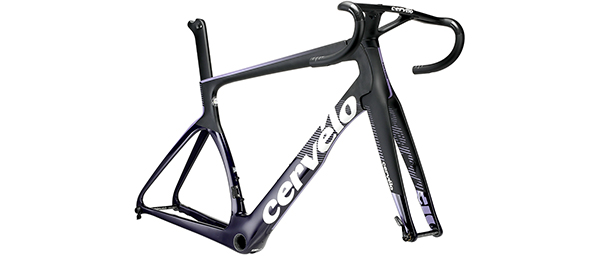

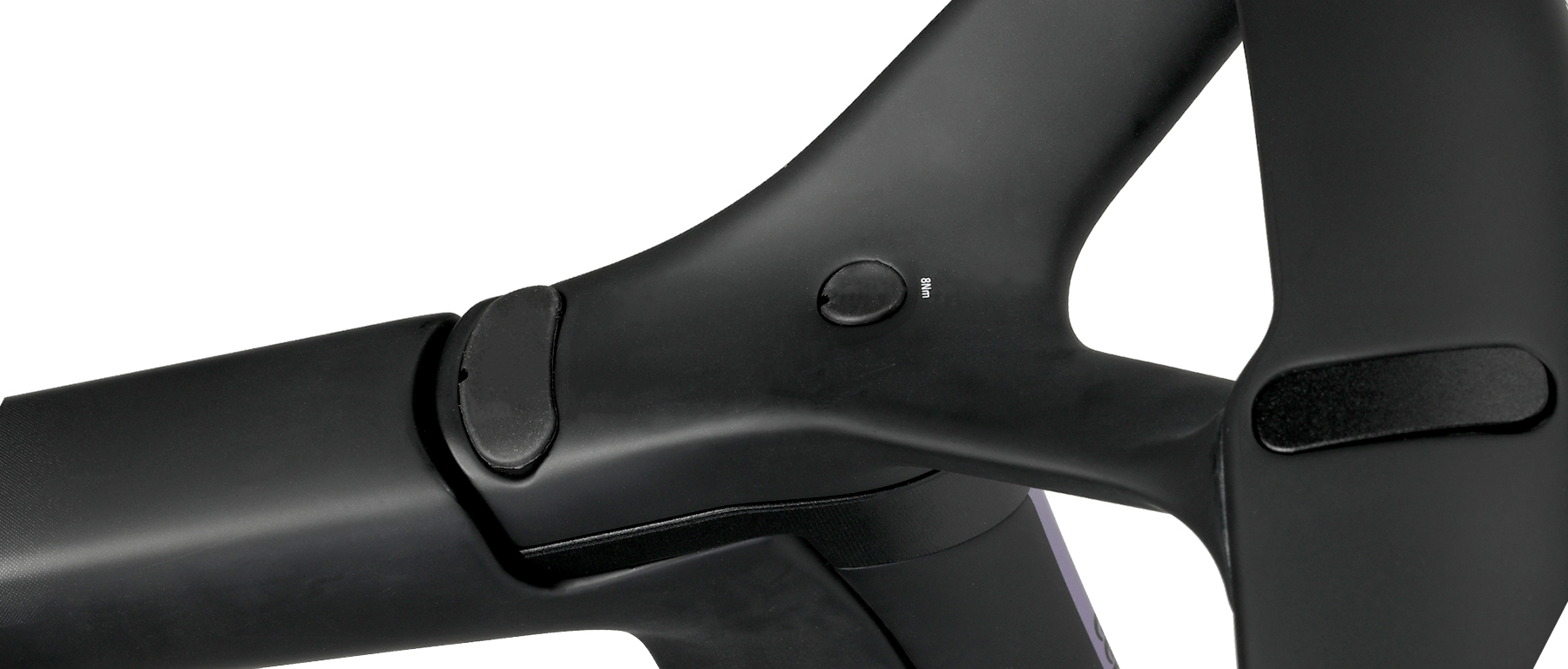

For virtually every one considering this bike, the 2019 S5's integrated CS28 V-shaped stem and aero drop carbon handlebar system has to be the focal point. It is fast, it is stiff, it is technical, and while it may be a little complicated at first glance it is actually designed to be easy to work with for electronic or mechanical shift systems, is actually far more adjustable than you might think, and it is clear the engineers considered every contingency. The entirely re-conceptualized aero cockpit achieves it's goals. Slip-in spacers can be used to adjust stem height and bar tilt without detaching any cables, making adjustment far simpler than in a typical aero bike. The stem was specifically designed to minimize the angle of cable bends, so riders get both perfect shifting/braking and the full aero benefit of hidden cables. The headset bearings are held in tension by a compression stem cap and internal tensioning rod, not a standard steerer. The rod helps support the bearing preload and gives plenty of room for running cables from the stem to the rear of the bike. The cap connects the external fork steerer and tensioning rod. Along with the tensioning rod it helps create bearing preload, incorporates cable guide holes, and provides a fork stop to prevent over-rotation. The cables pass through the center of the upper bearing and on through the space created within the head tube. This design ensures that the fork and bar rotate freely- no cable interference.
The usability of the set-up is excellent for such a deeply integrated set-up. You can change stem stack range up to 30mm (in 5mm increments). You can change the bar stack range by 2.5mm- independent of the stem, and bar pitch adjustment in two steps, to 2.5 or 5 °. The system is modular: wing, V, mount, and cap. If later you need more options, Cervelo offers a cap and mount (sold separately) for standard stems and handlebar. Other facts? You can easily run 700x28mm tires on 25mm external rim width wheels, and depending on rim (generally narrower) and actual tire measurements, you technically can fit 30mm tires.

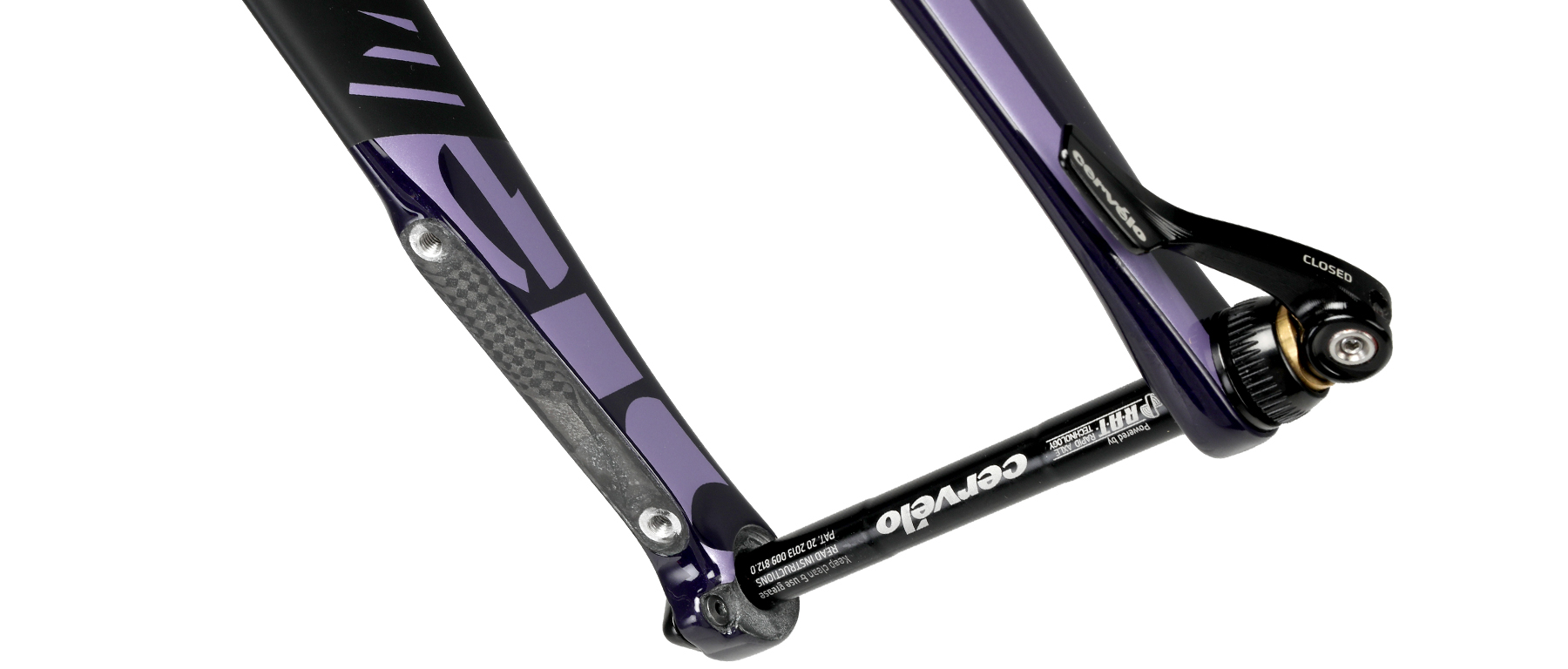

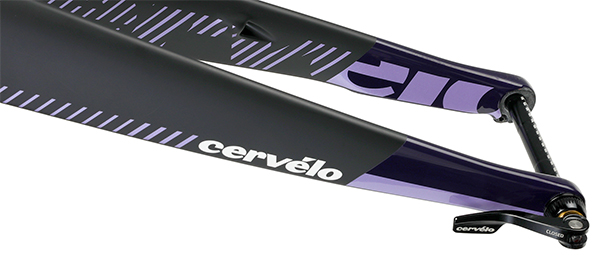

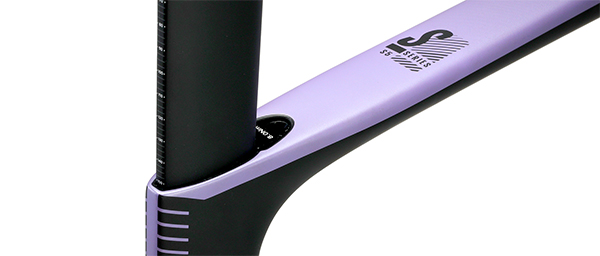

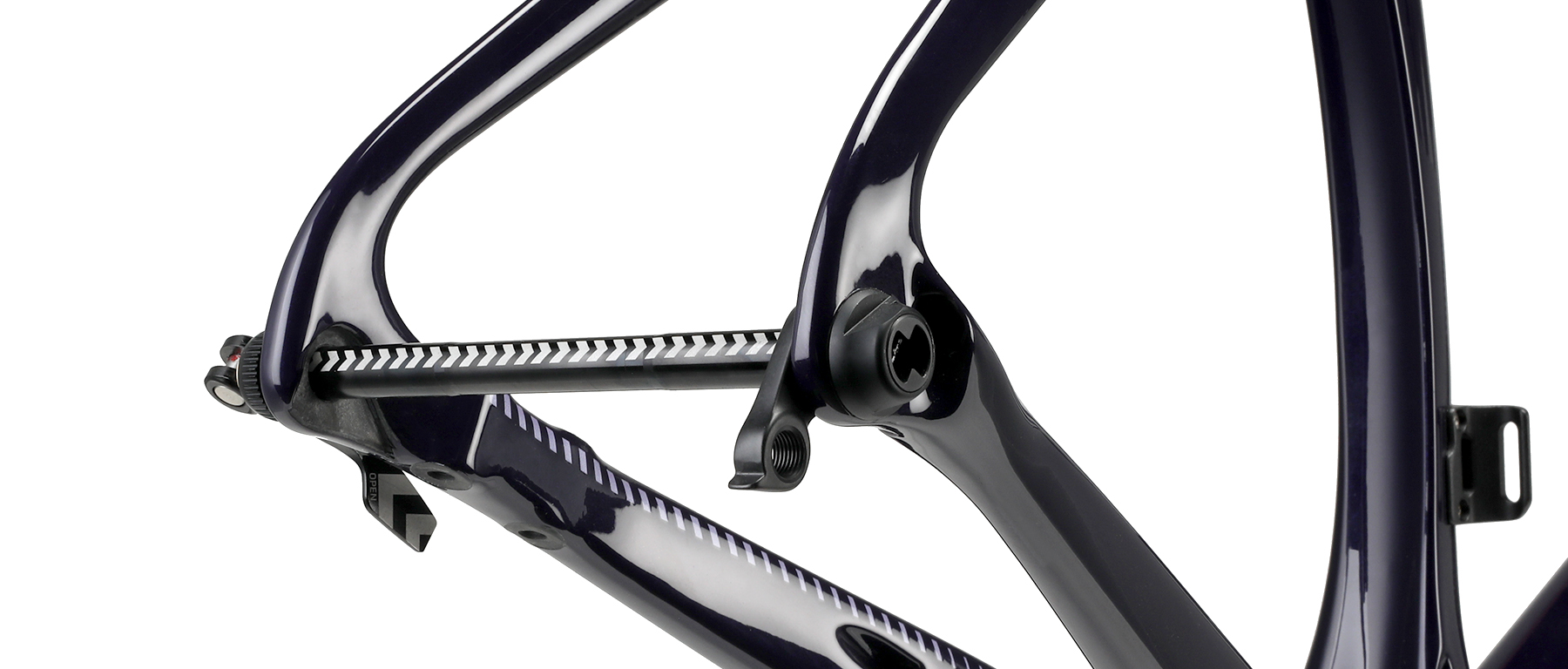

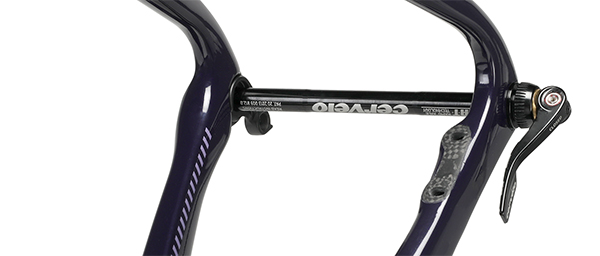

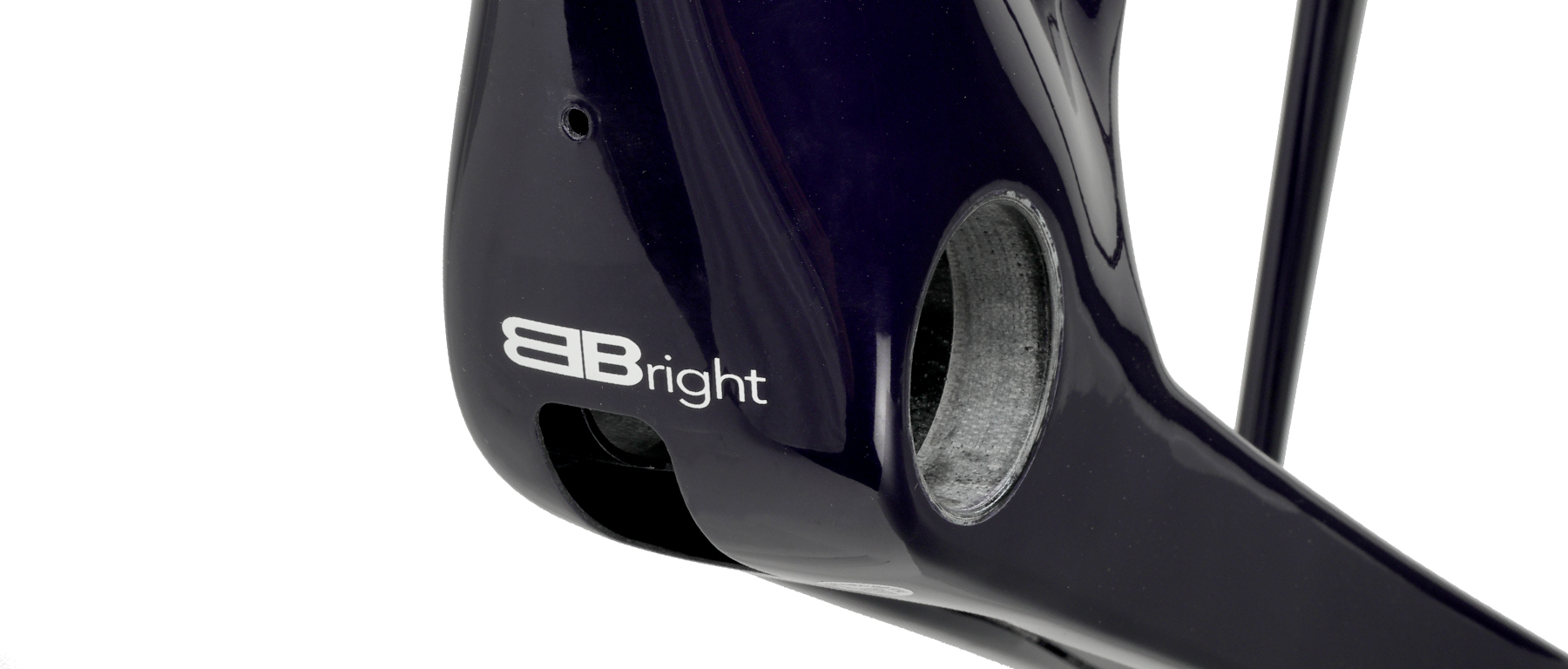

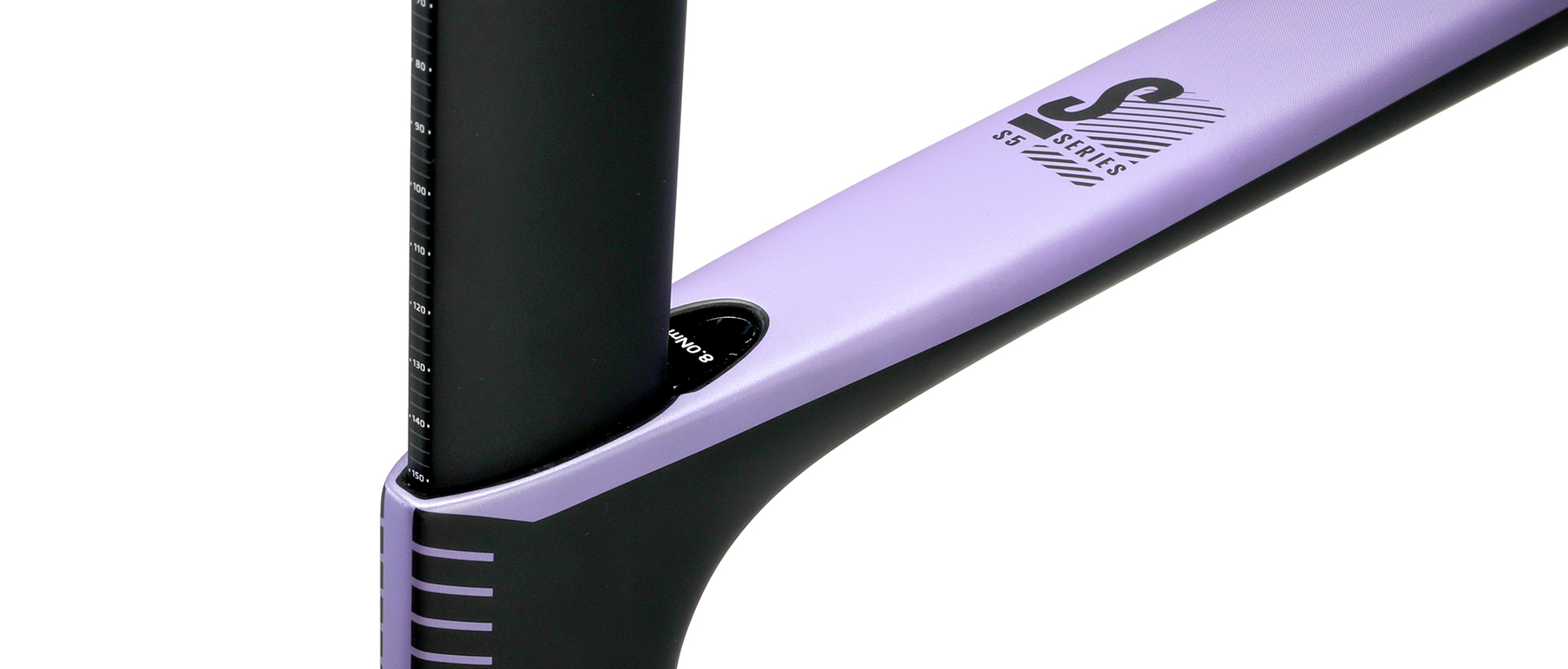

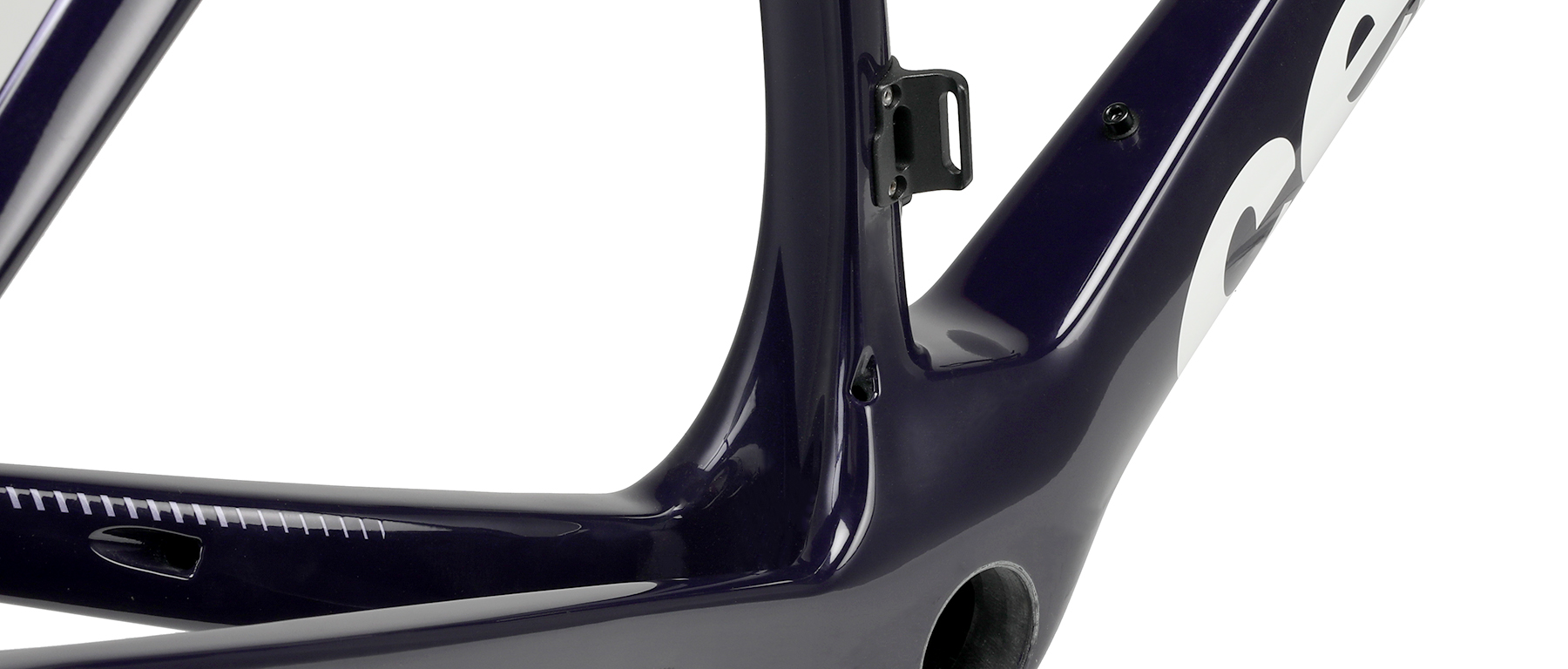

The S5 aero post was redesigned for the frame, though it is similar to the previous version. An easy-to-use thumbwheel allows you quickly set saddle angle. Familiar S5 and Cervelo features are here: with the Extended Seattube Cutout, dropped down tube, BBright™ bottom bracket, Dropped Downtube and TrueAero™ shapes for the frame, fork, bar, and seat post. The front wheel cutout is based on a true airfoil section. The use of Flat Mount disc brake and 12mm Cervelo threaded lever thru-axle systems deliver consistent, perfect aligning disc brake set-ups, fast, safe wheel changes and add significant stiffness across the whole assembly from the hubs into the frame and fork. The rear stays have an updated S5 shape coming up and out of the dropout to allow for more vertical compliance, reduced vibration.
The geometry is true road race and aggressive. The position favors the design and vice versa. Just a note on building this frameset. Cervelo strongly feels that a Cervelo-informed bike tech be used to assemble and set-up the S5 Disc. The bike experts in Sales here at Excel Sports can take you through the Shimano, SRAM, or Campagnolo options for your ideal build, and handle the full build service for a complete bike. Otherwise you must find a local Cervelo tech or a professional who can access all of the details required to assemble your S5. Call us at 800.627.6664 during business hours or email sales@excelsports.com to continue the conversation.
