Description

The Iron Cross Comp sits beneath the top end Pro and second tier Team versions of the same wheel concept. If you look carefully at the specifications, you see that the more race worthy (light weight, higher grade components), the lower the max rider weight limit. The Comp has a weight limit of 200lbs, so it is ideal for heavier competitors, but is also beefier for training, cross-trail, and endurance gravel riding. The Iron Cross series wheelsets from Stan's NoTubes are disc brake-only, tubeless models. The Iron Cross Comp wheels feature the new Neo hubset, the tubeless BST Iron Cross rim, and are available in 6-bolt or Center Lock disc rotor models, with thru axles front and rear
The Iron Cross Comp wheelset may not be super lightweight like the Pro version, but at 1681 grams, it is far from heavy. For the money, in a tubeless design, with low rotational weight, the Comp is more than competitive with other aluminum wheelsets in the price range. The 23.2mm wide Iron Cross rim features a 20mm internal bed width. The profile is a rounded triangular shape at just 17.5mm tall. Using NoTubes shallow BST technology, this rim holds tubeless ready tires tight at very high tolerances, even when you run a 34mm tire at very low pressures. When using sealant, your tires don't "burp" air, and even at extreme angles in the corners, the bead will hold air. The system is proven, and very effective. The rims themselves weigh just 385 grams, yet have excellent inherent stiffness and strength.

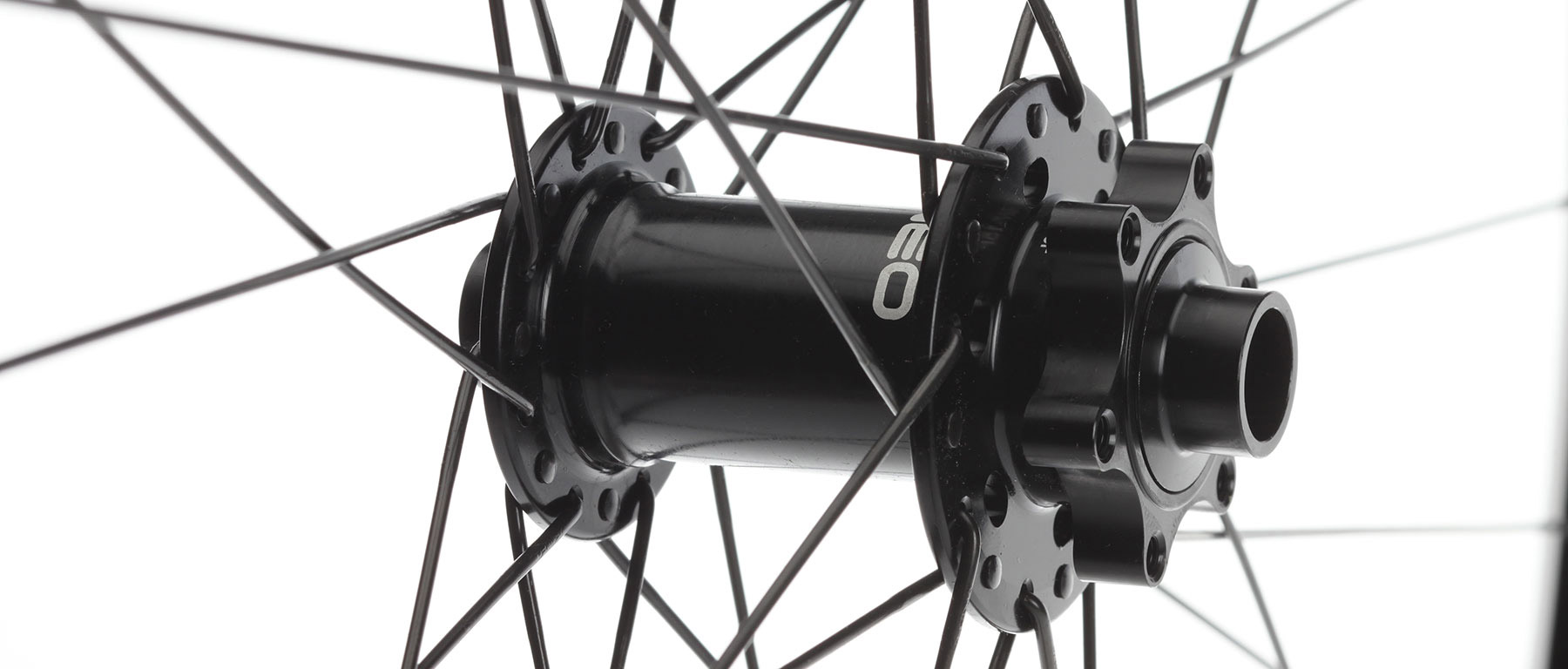

The 32 hole Neo hubset shares many qualities with it's Ultimate breathren: 100% precision CNC machined hubshells, the wide stance bearing system in the freehub, integrated high durometer seals, and oversized swaged. The differences lie in the details. Oversized chrome steel bearings are used and in the rear, the 4-pawl, 10 degree, 36-point engagement system replaces the 6-pawl system. While a step down, the 4-point is still superior than the previous generation NoTubes design.The engagement is still simultaneous and incredibly reliable. The hub flanges of the machined shell are now angled to improve spoke alignment and ease more consistent spoke tension. Construction and performance reflect reliability and durability, perfect for heavy use.
The lacing is 32 hole, 3x all around, using slightly stouter Sapim Race Black spokes (2.0/1.8/2.0) with Secure Lock aluminum nipples. This construction can handle aggressive riding and the greater braking torque of riders up to 200lbs. Unlike the thinner spokes of the Pro and Team versions, these can handle more compressive loads at impact and with the high tension set-up, braking forces are positively channeled to the rotating mass with zero wind-up at the hub.
With most disc cross and gravel bikes moving to thru-axle systems, that is how these disc brake wheels are set-up. The front features the 15/100mm thru-axle, and the rear the 12/142mm version. NoTubes offers the Neo hubset in both 6-bolt and Center Lock disc rotor configurations, so you can choose the option that you prefer. It is important to note that NoTubes offers a wide variety of axle cap options should you change axle systems at some point or simply want flexibility for multiple bikes with different hub standards. In no way should the Iron Cross Comp be described as a compromise or "lower-end" wheelset. We view it as the sturdier older brother of the race only wheelsets, and better suited for most gravel riding, commuting, heavy training, and racers who happen to weigh closer to 200 lbs. The Iron Cross Comp can handle whatever you require of it, so if you need a tubeless, disc brake, thru-axle wheelset for your cross, gravel or commuting bike, choose performance, value and the best tubeless ready system on the market.
Return to TopFeatures
- Durable, reliable tubeless ready, disc brake wheelset for cross, gravel or multi-purpose
- 32h Iron Cross aluminum rims are tubeless ready, each weighs 385 grams
- Wide, low-profile rim design for better cornering and faster rolling
- Rim spec: 23.2mm external width, 20mm internal width, 17.5mm profile
- Bead Socket Technology for unmatched tubeless performance
- New, fast engaging, 100% CNC machined Neo hubs, 32h front/rear
- Larger axles, Chrome steel bearings, wider freehub bearing placement
- 4-pawl, 10 degree, 36-point engagement system, precise at slow speeds
- Front hub: 15mm/100mm thru-axle / Rear hub: 12mm/142mm thru-axle
- Sapim Laser Black spokes2.0/1.8/2.0 with Secure Lock aluminum nipples, laced 3x
- Disc brake options: 6-bolt, Center Lock
- Freehub: Shimano HG type 11 speed
- Included: Pre-taped for tubleless, tubeless Presta valves
- Color: Black
- Weight: 1681 grams per set
Note: Rider weight limit of 200lbs
