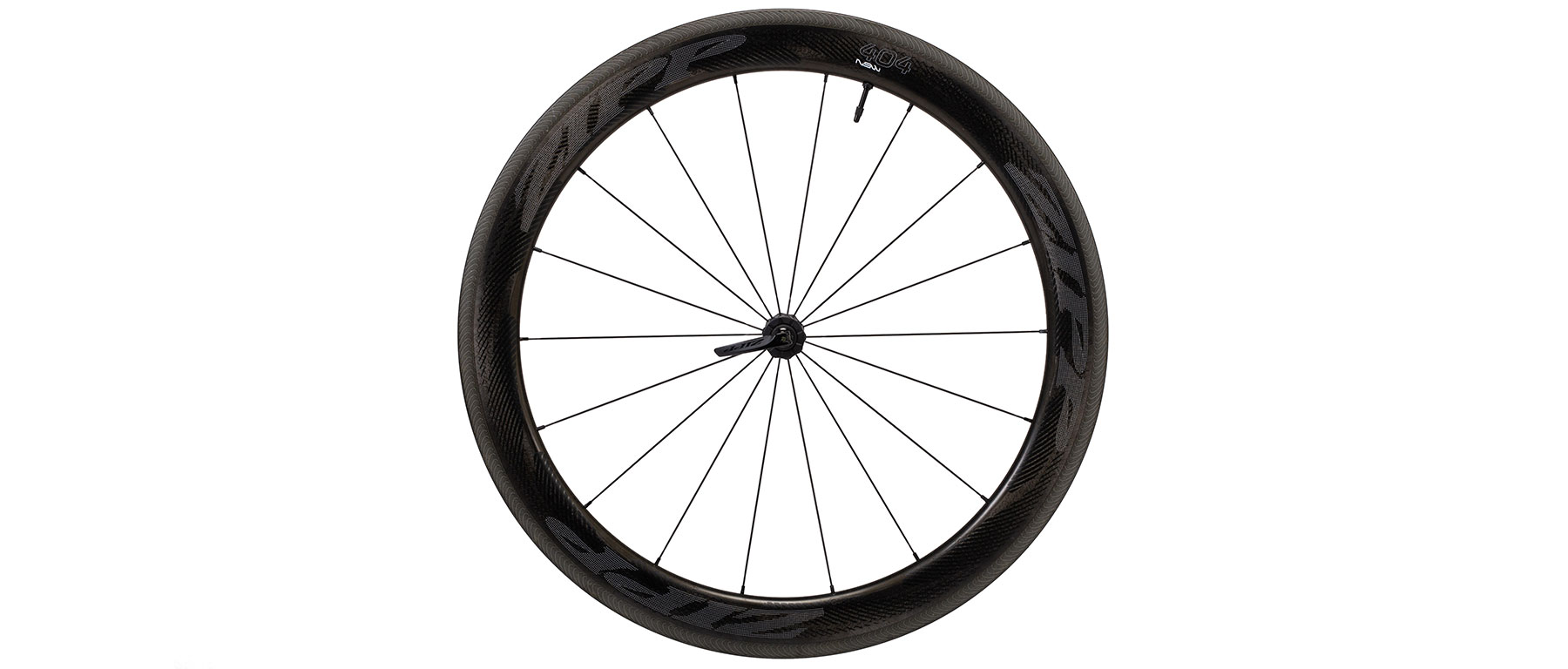

This 404 NSW Carbon Clincher Tubeless Front Wheel was a sales rep DEMO. It may have been shown in clinics and used for a photo shoot; appears as new. The standard Zipp warranty program applies. If you have any questions about this wheel, please contact us before purchasing.

Zipp is constantly working to improve their entire line of incredible Firecrest and NSW aerodynamic wheels through assessing engineering, design, bike and tire development, as well as how cyclists and triathletes are utilizing their wheels. In summer 2018 Zipp released innovations and improvements to the existing wheel line-up with new clincher-tubeless rims that have more tubeless-appropriate internal and external widths, as well as improving strength and Zipp's tireless pursuit of Aero Balance (the combination of low drag and stability). To that end, the Zipp 404 NSW Carbon Clincher Tubeless Front Wheel features an entirely redesigned rim shape that aerodynamically integrates wider tubeless tires for enhanced ride quality and performance. The 404 NSW now has a wider 19mm internal rim width and corresponding outer rim shape for aerodynamic optimization with 25mm tires and able to be efficient with 28mm as well.

The 58mm deep 404 NSW Carbon Clincher Front Wheel was developed to be raced, but it is strong and resilient, with a smooth ride that makes this a great every day wheel. Training and racing on the same wheels equals incredible confidence and familiarity. Clincher and Tubeless tire options make tire management simpler and more cost effective than tubulars, and with real improvements in race-ready tubeless, the feel questions are down more to preference and subtleties. With it's lower profile, incredible stability and 738 gram weight, the 808 NSW can adeptly handle corners at high speed, and spins up immediately as you power out and onward. Complementing the 19mm internal width is a brake track width of 26.4mm, and max width of 27mm, so riding tires from 23-28mm wide means you can maximize the tire/wheel aerodynamic relationship carried through the ABLC Sawtooth™ rim dimple patterning. This advanced NSW dimple design consists of 12 nodes that are precisely clocked to start aerodynamic shearing at a rate of 50hz at a rider speed of 20mph. Sawtooth induces small sheet vortices that shed at a low magnitude, but at a higher natural frequency, thus decreasing the laminar bubble effect on the aerodynamically shielded side of the rim’s profile to further reduce high yaw drag and improve crosswind stability while providing aerodynamic speed.

The hubset is Zipp&s #39; Cognition series and while the real magic happens in the rear hub, the front hub was developed with a unique scalloped edge hubshell design that optimizes the stiffness of the lightweight alloy hub design to preserve the effective bearing bore diameter under load. In order to keep the Swiss steel bearings precisely in line with each other and the oversized alloy axle - for the lowest friction and resistance possible, the scalloped edges and even, high radial spoke tension, ensure the hub shape won't distort. This is type of detail that wins races and establishes record times. Every watt of energy conserved or gained through design saves valuable seconds.

Zipp laces 18 Sapim® CX-Ray lightly bladed, straight pull steel spokes in the radial pattern via Sapim's SecureLock external nipples. With the spokes disappearing into the hub, the overall effect is visually and aerodynamically very clean. Zipp's clincher technology is well proven and has made clincher use for events not only feasible, but common with today's top clincher tires like the Zipp Tangente series. As stated already, race ready tubeless tire options from 23-30mm are widely available and starting to make serious inroads into US domestic cycling and triathlon as the tire option of choice for racing and training. Zipp has engineered their own Tangente Speed RT25 and Tangente Speed RT28 tubeless tires to deliver the lowest rolling resistance, best dry and best overall cornering grip among major brands.

Rim braking with carbon wheels is a huge consideration for all cyclists, and Zipp's outstanding Showstopper™ brake track offers unparalleled braking and heat management through pairing of a directional, molded-in, texture with silicon carbide particles suspended in the surface resin in a molded groove pattern. That pattern has been matched with the surface and cooling channels of the included Tangente Platinum Pro Evo brake pads for incredible stopping power in dry or soaking wet conditions, in any terrain. The leading edge of the pad and first two channels efficiently wipe water and debris outward, cleaning and drying the braking surface, while the second two channels have maximum interference as the grooves create greater braking force without heat build-up.

Just to raise the bar a little higher, Zipp uses ImPress™ technology to apply graphics directly to the rim surface, giving the wheels an even stealthier appearance without mitigating the aerodynamics of the dimple structures. The NSW design has been featured on many race winning road and triathlon bikes. Now, you don't have to be a racing cyclist or triathlete to enjoy and benefit from the 404 NSW Carbon Clincher Front Wheel. There are plenty of serious cycling enthusiasts who can push the capabilities of the 1620 gram complete wheelset. You truly can ride these wheels as your every day option. Now with larger tire volumes in both clincher and tubeless options, you get more durability and can smooth out the ride with lower pressures while maintaining speed, efficiency and stability.
